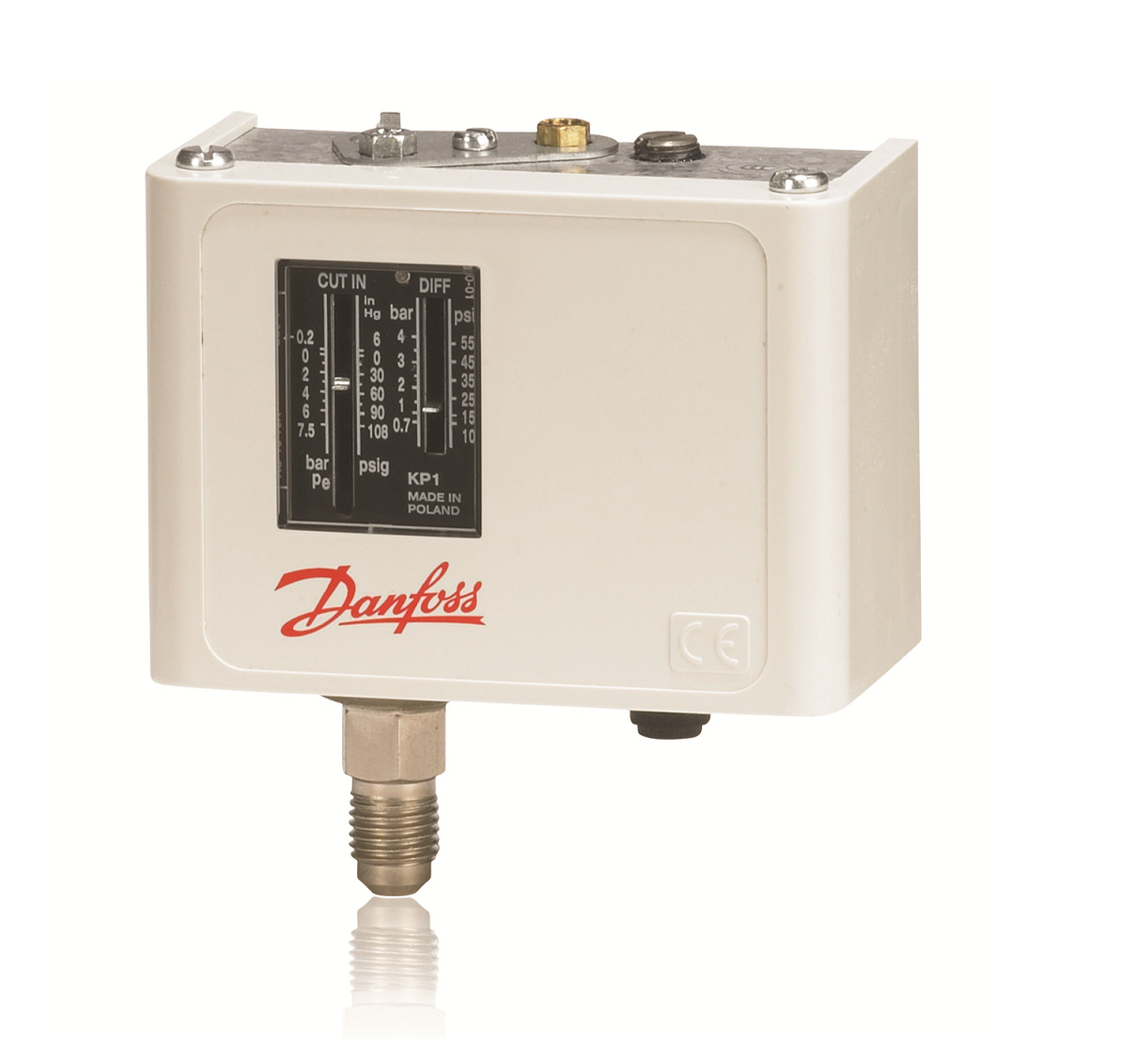

KP 1 AUTO RESET 1/4" FLARE
PRESSURE CONTROL
PRESSURE RANGE: -0.2 TO 7.0 BAR - DIFF. RANGE: 0.7 TO 4.0 BAR
KP 1 AUTO RESET 1/4" FLARE PRESSURE CONTROL
Catalog number
201458004
EAN
5715162145111
Manufacturer number
060-110166
Country of origin
PL
HS number
90322000
- Delivery stock products within 1-2 working days
- Free delivery Netherlands > € 200,00 net
- High stock level compressor spare parts
- Only registered THIMAR customers
Features
- Ultra-short bounce time thanks to snap action function (reduces wear to a minimum and increases reliability)
- Manual trip function (electrical contact function can be tested without the use of tools)
- Types KP6, KP7, KP17 and KP47 with fail-safe double bellows element
- Vibration and shock resistant
- Compact design
- Fully welded bellows element
- High reliability both electrically and mechanically
Product information "KP 1 AUTO RESET 1/4" FLARE"
| Ambient Temperature Note: | 80 °C/176 °F for max 120 min |
|---|---|
| Ambient temperature range [°C] [max]: | 65 °C |
| Ambient temperature range [°C] [min]: | -25 °C |
| Application note: | Not applicable for liquid line |
| Approval(s): | BV CCC CE CMIM DNV EAC GL LLC CDC EURO-TYSK LR LVD PED RINA RMRS RoHS China c UL us UL353, CS C22.2 c UL us UL873, CS C22.2 |
| CE evaluated: | Yes |
| China RoHS compliance: | Yes |
| Contact function: | SPDT |
| Contact rating: | AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V |
| Contains batteries: | No |
| Differential [bar] [max]: | 4 bar |
| Differential [bar] [min]: | 0.7 bar |
| Differential [psi] [max]: | 58 psi |
| Differential [psi] [min]: | 10 psi |
| EEE category: | 5 small equipment (any external dimension < 50 cm) |
| EN 60947 electrical properties: | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A |
| EN 60947 wiring properties: | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| EU RoHS compliance: | Yes |
| EU RoHS exemption clause: | No |
| Electrical connection: | Rubber cable gland |
| Electrical connection size: | 6-14 mm |
| Enclosure rating IP: | IP44 |
| Enclosure rating Nema (~): | 2 |
| Fluid Group: | 1 |
| In scope of WEEE: | Yes |
| Lubricants compatibility: | Oilfree applications |
| Max. Working Pressure [bar]: | 17 bar |
| Max. Working Pressure [psig]: | 245 psig |
| Max. test pressure [bar] Pe: | 20 bar |
| Max. test pressure [psig]: | 290 psig |
| Oil free refrigerants: | R134a R513A R515B |
| Other RoHS documentation: | Saudi Arabia RoHS |
| PED category: | IV |
| Packing format: | Multi pack |
| Pressure Connection: | Male |
| Pressure Male/Female: | Male |
| Pressure Range Max. (BAR): | 7.5 |
| Pressure Range Min. (BAR) : | -0.2 |
| Pressure connection size: | 1/4 |
| Pressure connection standard: | DIN 8906 |
| Pressure connection type: | Flare |
| Pressure sensing element: | Bellows |
| Product Group: | Switches and thermostats |
| Product Name Description: | Pressure switch |
| Product accessories: | Switches accessories |
| Product description: | Pressure Switch |
| Quantity per packing format: | 36 pc |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no.1306-19-0) |
| Refrigerants: | R113 R1234yf R1234yz R1234ze(E) R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R454C R455A R507A R513A R515B R1233zd(E) |
| Regulation range: | 6 inHg - 108 psig |
| Regulation range [bar] Pe [max]: | 7.5 bar |
| Regulation range [bar] Pe [min]: | -0.2 bar |
| Reset Function: | Auto |
| Reset function: | Auto |
| Serviceable: | No |
| UL approval file name: | E31024 MH27572 |
| UL approved refrigerants: | R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B |
| UL evaluated: | Yes |
| Pressure Connection Thread: | SAE |
| Pressure Connection Size: | 1/4" |
| Ambient Temperature Note: | 80 °C/176 °F for max 120 min |
|---|---|
| Ambient temperature range [°C] [max]: | 65 °C |
| Ambient temperature range [°C] [min]: | -25 °C |
| Application note: | Not applicable for liquid line |
| Approval(s): | BV CCC CE CMIM DNV EAC GL LLC CDC EURO-TYSK LR LVD PED RINA RMRS RoHS China c UL us UL353, CS C22.2 c UL us UL873, CS C22.2 |
| CE evaluated: | Yes |
| China RoHS compliance: | Yes |
| Contact function: | SPDT |
| Contact rating: | AC15=10 A, 400 V AC1=16 A, 400 V AC3=16 A, 400 V DC13=12 W, 220 V LR=112 A, 400 V |
| Contains batteries: | No |
| Differential [bar] [max]: | 4 bar |
| Differential [bar] [min]: | 0.7 bar |
| Differential [psi] [max]: | 58 psi |
| Differential [psi] [min]: | 10 psi |
| EEE category: | 5 small equipment (any external dimension < 50 cm) |
| EN 60947 electrical properties: | Insulation: 400V Pollution degree: 3 Rated impulse voltage: 4 kV Short circuit prot, fuse: 16A |
| EN 60947 wiring properties: | Flex, ferrules: 0.5-1.5 mm2 Flex, no ferrules: 0.7-2.5 mm2 Solid/stranded: 0.75-2.5 mm2 |
| EU RoHS compliance: | Yes |
| EU RoHS exemption clause: | No |
| Electrical connection: | Rubber cable gland |
| Electrical connection size: | 6-14 mm |
| Enclosure rating IP: | IP44 |
| Enclosure rating Nema (~): | 2 |
| Fluid Group: | 1 |
| In scope of WEEE: | Yes |
| Lubricants compatibility: | Oilfree applications |
| Max. Working Pressure [bar]: | 17 bar |
| Max. Working Pressure [psig]: | 245 psig |
| Max. test pressure [bar] Pe: | 20 bar |
| Max. test pressure [psig]: | 290 psig |
| Oil free refrigerants: | R134a R513A R515B |
| Other RoHS documentation: | Saudi Arabia RoHS |
| PED category: | IV |
| Packing format: | Multi pack |
| Pressure Connection: | Male |
| Pressure Male/Female: | Male |
| Pressure Range Max. (BAR): | 7.5 |
| Pressure Range Min. (BAR) : | -0.2 |
| Pressure connection size: | 1/4 |
| Pressure connection standard: | DIN 8906 |
| Pressure connection type: | Flare |
| Pressure sensing element: | Bellows |
| Product Group: | Switches and thermostats |
| Product Name Description: | Pressure switch |
| Product accessories: | Switches accessories |
| Product description: | Pressure Switch |
| Quantity per packing format: | 36 pc |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) Cadmium oxide (CAS no.1306-19-0) |
| Refrigerants: | R113 R1234yf R1234yz R1234ze(E) R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R454C R455A R507A R513A R515B R1233zd(E) |
| Regulation range: | 6 inHg - 108 psig |
| Regulation range [bar] Pe [max]: | 7.5 bar |
| Regulation range [bar] Pe [min]: | -0.2 bar |
| Reset Function: | Auto |
| Reset function: | Auto |
| Serviceable: | No |
| UL approval file name: | E31024 MH27572 |
| UL approved refrigerants: | R113 R124 R134a R22 R404A R407A R407C R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A R515B |
| UL evaluated: | Yes |
| Pressure Connection Thread: | SAE |
| Pressure Connection Size: | 1/4" |
